Name: Carbon steel ball valve 799 BSP high pressure 1/4''
SKU: 7828
Price: 19.342857142857 EUR
Availability: InStock

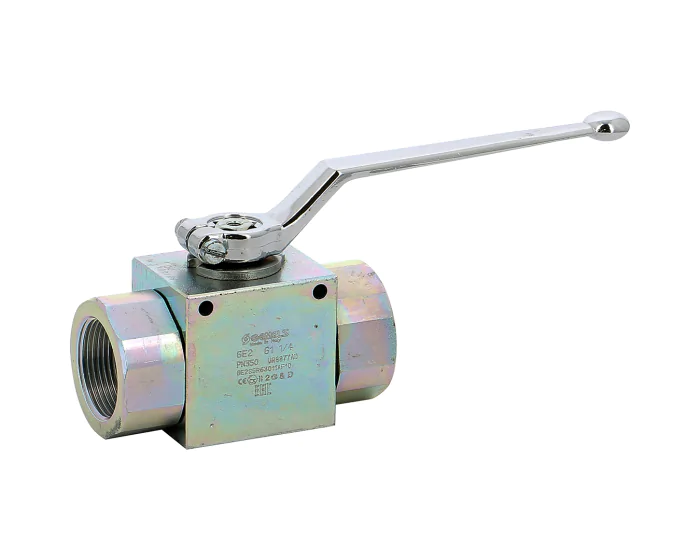

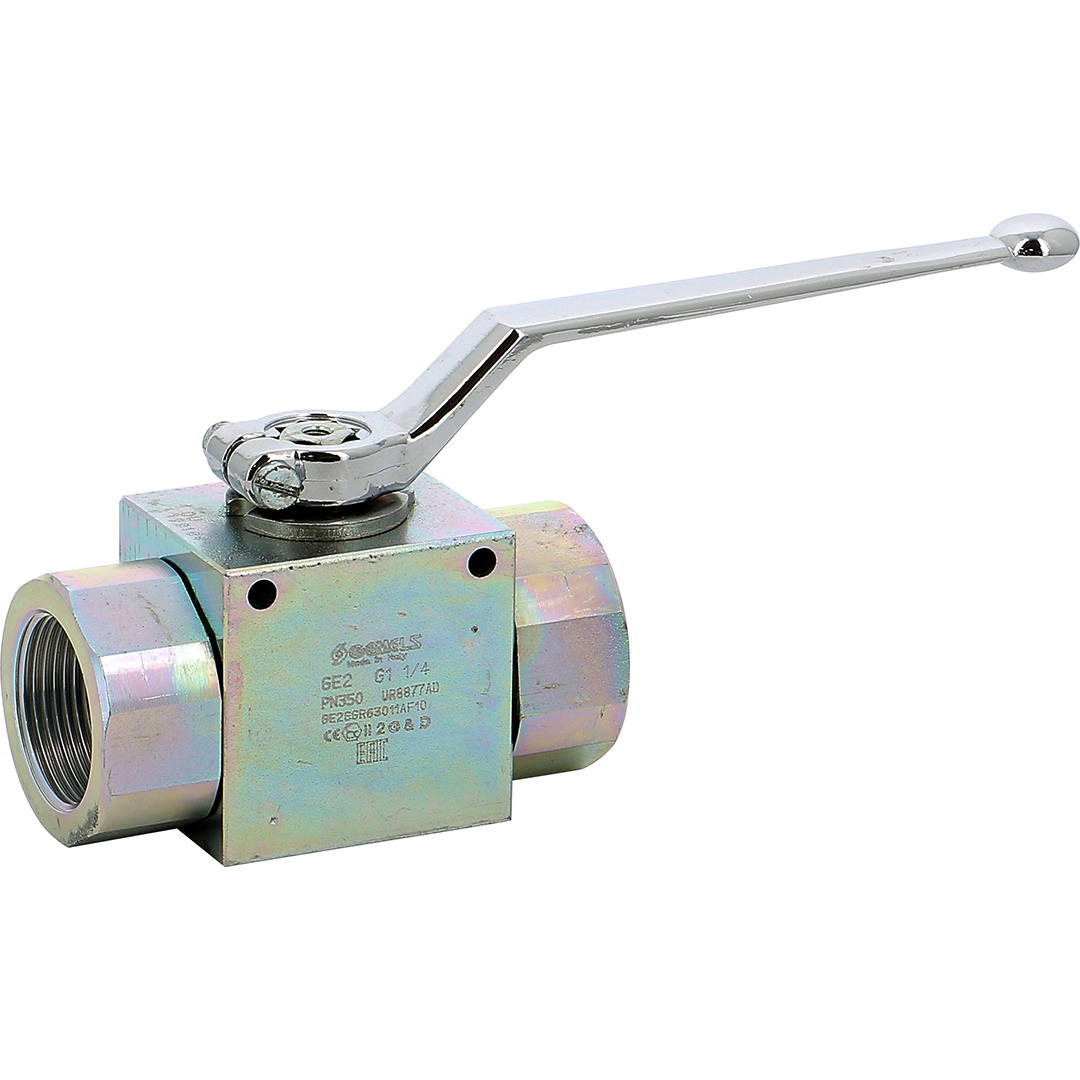

Carbon steel ball valve 799 BSP high pressure 1/4''

€19.34 (excl. btw)

The 799 series ball valve in galvanised steel, high pressure, reduced bore for hydraulic applications

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Specification	Value
DN inches NPS	1/4''
Thread standard	ISO 228-1
Tightness test standard	API 598
Stem sealing material	NBR O-ring
Opening device	Handle
Application	Hydraulics
ATEX atmosphere	Group II Cat. 2G/2D
Shaft/stem matérial	Carbon steel 1.0737
ATEX compatible	Yes
Torque (Nm)	16
DN	DN8 - 1/4''
Face to Face (mm)	71.0
Fluid	Hot water / Cold water / Oil / Some acids
Kv (m³/h)	4.2
Body material	Carbon steel
Number of ways	2
Bore	Reduced
ISO pad 5211	No
PS (bar)	500
Connections	BSP FF
Seats	POM
Ball material	Chrome-plated steel 1.0737
TS max (°C)	100
TS min (°C)	-10
Ball valve design	Monobloc
ATEX zone	1 & 21. 2 & 22
Warranty period	2 years
Handle material	Aluminium
Handle type	Yellow lever

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
7829	BSP FF Carbon steel Reduced Monobloc 1/4''	799002	S1007922	€19.34 (excl. btw)	add to cart
7830	BSP FF Carbon steel Reduced Monobloc 3/8''	799003	S1007923	€20.44 (excl. btw)	add to cart
7831	BSP FF Carbon steel Reduced Monobloc 1/2''	799004	S1007924	€22.41 (excl. btw)	add to cart
7832	BSP FF Carbon steel Reduced Monobloc 3/4''	799005	S1007925	€41.71 (excl. btw)	add to cart
7833	BSP FF Carbon steel Reduced Monobloc 1''	799006	S1007926	€51.73 (excl. btw)	add to cart
7834	BSP FF Carbon steel Reduced Monobloc 1''1/4	799007	S1007927	€55.90 (excl. btw)	add to cart
7835	BSP FF Carbon steel Reduced Monobloc 1''1/2	799008	S1007928	€185.19 (excl. btw)	add to cart
7836	BSP FF Carbon steel Reduced Monobloc 2''	799009	S1007929	€224.29 (excl. btw)	add to cart
